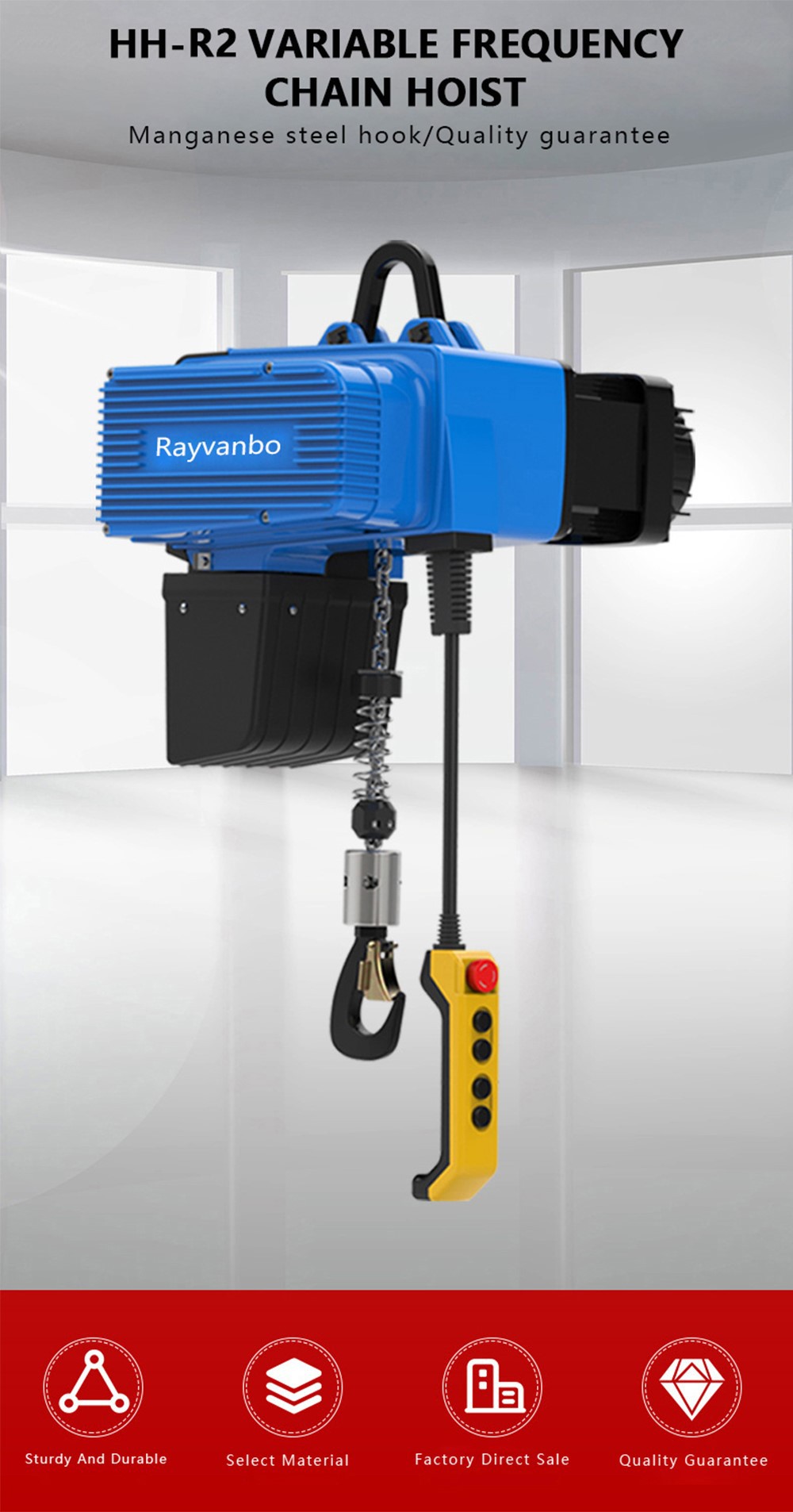

Product Name: HH-R2 Variable Frequency Intelligent Hoist
Load Capacity: 125kg,250kg,500kg,1000kg,2000kg
Lifting Speed:1/12,0.5/12,1/10,0.5/10,1/8,0.5/8,0.5/4 m/min
Vertical Maximum Stroke: 4,5,8,11m(Can be customized)
Send Inquiry
Description

Products Description



product-1000-1906

Product Overview: The Hoist That Thinks Before It Lifts

Standard hoists are dumb. You push the button, they yank the load off the ground, and the operator has to deal with the swing. The Intelligent Hoist from Rayvanbo is the fix for that.

We've integrated a micro-VFD (Variable Frequency Drive) directly into the hoist body, not as an external box hanging off the wall. This unit soft-starts every lift. There's no "bang" when the brake releases. It ramps up to speed over 1.5 seconds and ramps down just as smoothly. For shops doing precision assembly-think aligning a motor to a gearbox housing-this feature alone prevents thousands of dollars in flange damage. The onboard load cell also gives you a live readout of weight on the hook. If you're over 110% capacity, the hoist beeps and refuses to lift. It's not just a hoist; it's a rigging assistant.



product-1000-1163

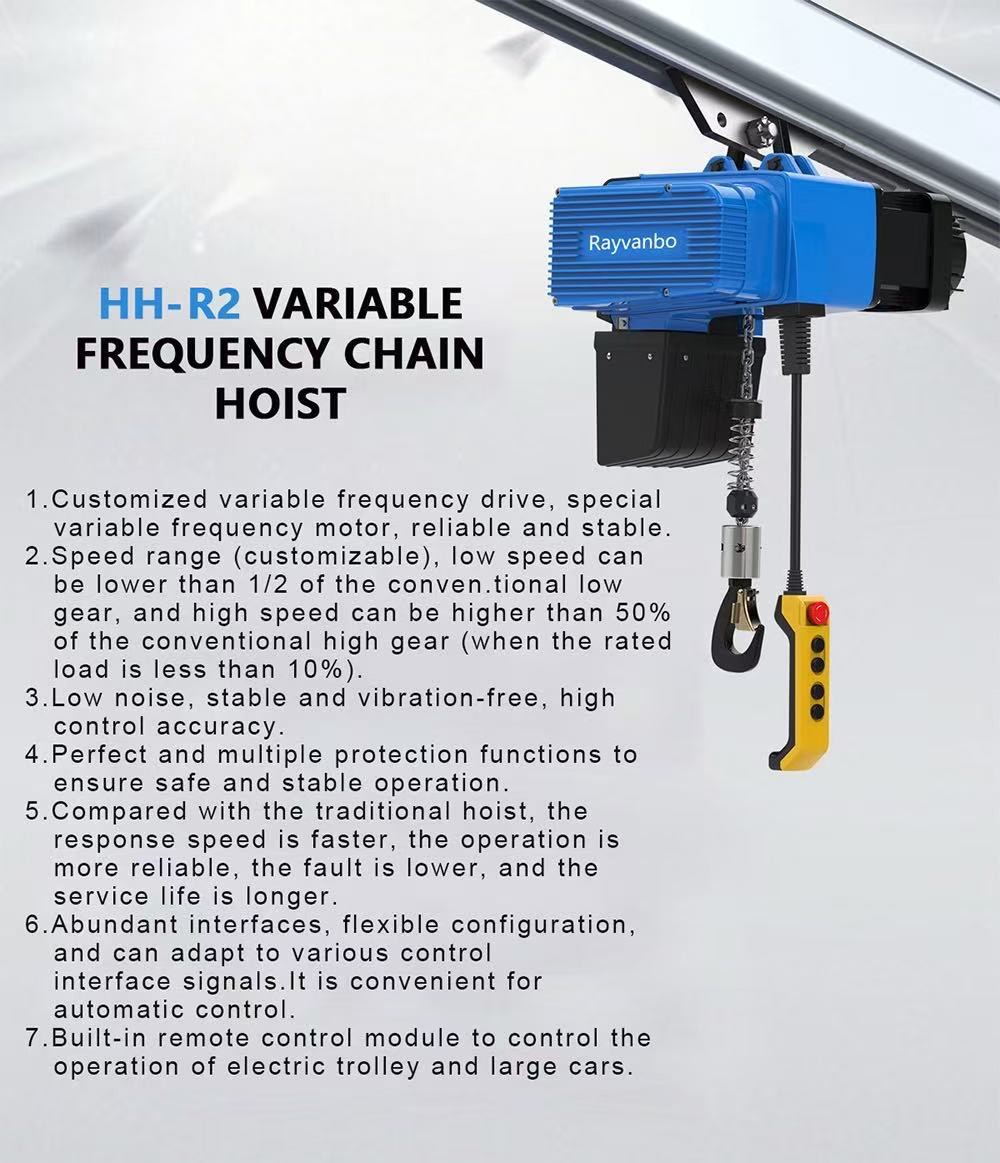

Key Features: What "Smart" Actually Means on the Floor

We've trained dozens of distributors on this unit. Here's what matters in the field, not just in the brochure.

On-Board VFD (Variable Frequency Drive): The motor doesn't just run at one speed. It's dual-speed programmable. You can set "Slow" to 1.5 m/min for inching and "Fast" to 5.0 m/min for travel. The acceleration and deceleration curves are adjustable via the pendant. This eliminates load bounce entirely.

Live Load Display & Data Logging: The control box has an LED screen showing real-time hook weight (kg/lbs). It logs total lifted tonnage and total run hours. This is critical for scheduling maintenance-you replace the gear oil based on actual tonnage lifted, not just a calendar date.

Phase Sequence Protection: If the electrician wires the plug wrong and reverses the phases, a standard hoist tries to run "down" when you hit "up," blowing the limit switch. This unit reads the phase rotation on startup and faults out with an error code "E-02" before the contactor even engages. Saves the limit switch every time.

Electronic Overload with Memory: Standard hoists use a friction clutch. Smart hoists use a strain gauge sensor. It's accurate to within +/- 2%. The hoist records the last 10 overload attempts, which is a great tool for site managers to see who is trying to lift the building foundation.

Heat Management Logic: If the VFD heat sink hits 80°C, the hoist doesn't just shut down. It automatically reduces lifting speed by 30% to cool the inverter while still allowing you to finish the current lift cycle.



Products Parameters



Maximum Load(kg)

125

250

500

1000

2000(Double Chain)

Lifting Speed(m/min)

1/12

0.5/12

1/10

0.5/10

1/8

0.5/8

1/8

0.5/8

0.5/4

Rated Power(kw)

0.45

0.45

0.75

1.5

1.5

Vertical Maximum Stroke(m)

4/5/8/11(Customizable)

Control Mode

Wire control button/remote control button

Deadweight(kg)

23

23

32

55

63

Power Supply

Standard 380V(Optional 220V)

Working Level of the Organization

D2

Working Temperature

-10℃-55℃



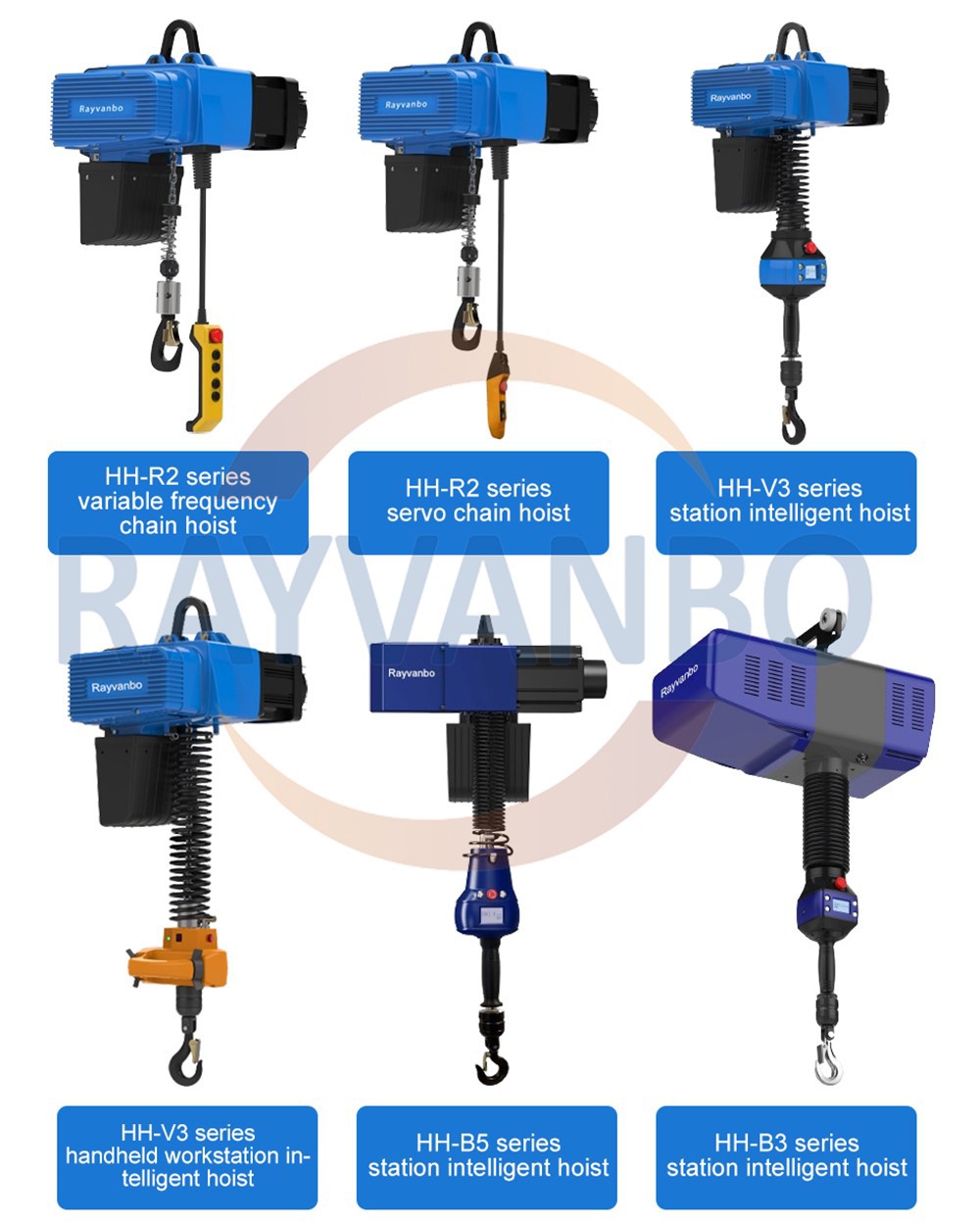

product-1000-1247



Products Details



product-1000-695

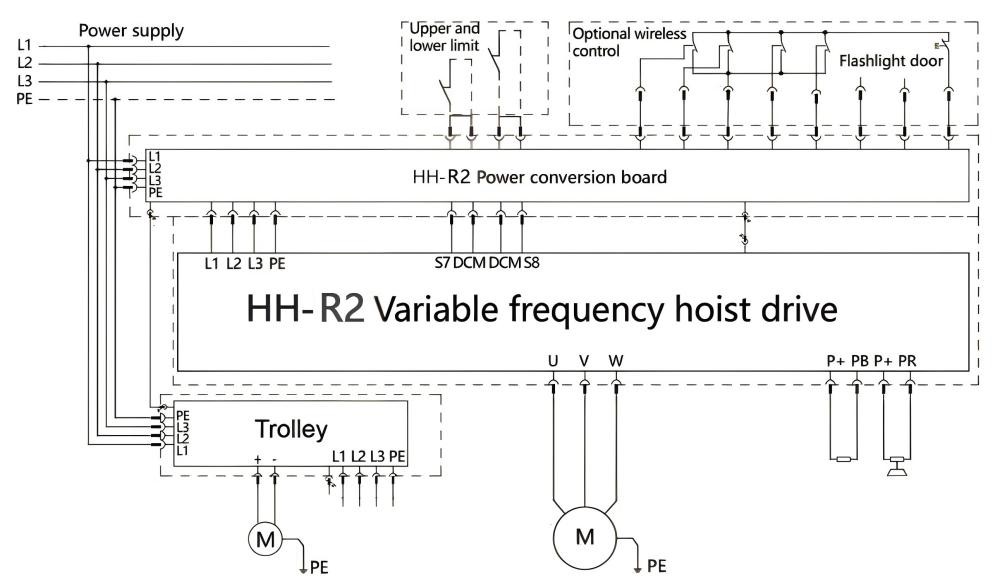

product-1000-580

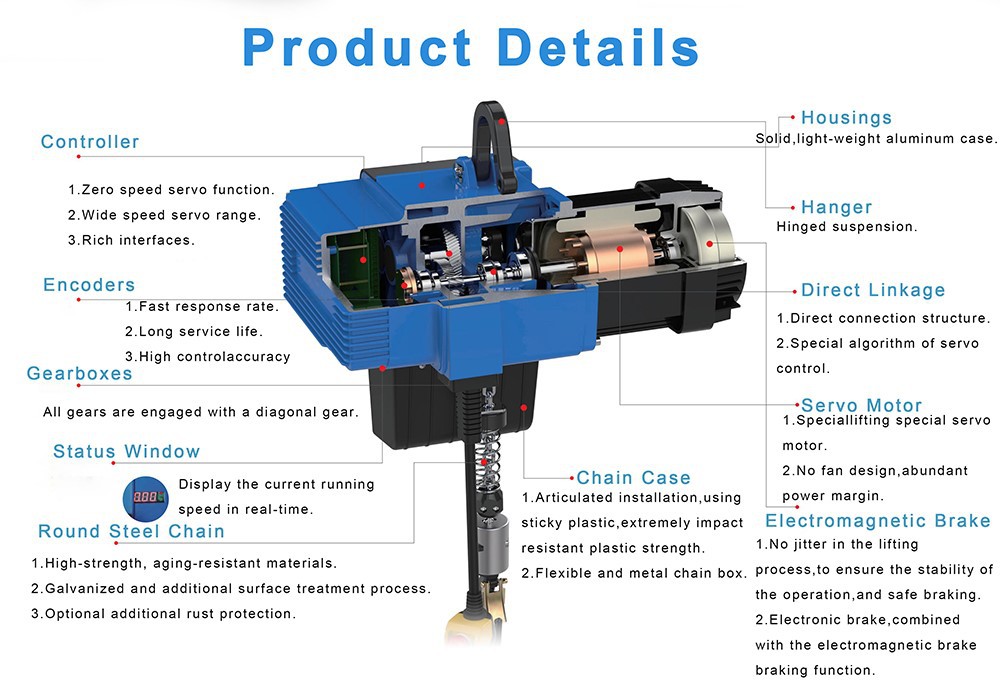

Structure & Components: Where the Money Went

You can't just bolt a VFD to a 1980s hoist gearbox and call it smart. The housing had to be redesigned.

Thermal Bridge Chassis: The aluminum motor housing is ribbed. Those ribs aren't cosmetic; they direct airflow from the brake fan over the VFD heat sink. This is a closed-loop cooling system, so you don't suck shop dust through the electronics bay.

Friction-Type Torque Limiter: We still kept a mechanical clutch for redundancy. But it's set higher than the electronic limit. It's the safety net, not the primary control.

Hook Assembly: The hook has a built-in anti-spin bearing race and a Hall effect sensor that tells the VFD if the hook is rotating. If it spins too fast, the VFD slows the lift to prevent the chain from twisting into a bird's nest.



Safety Features: Redundant & Digital

Brake Monitoring: The hoist measures the coil resistance of the electromagnetic brake before releasing it. If the brake coil is open, the lift won't start. It displays "Brake Fault" instead of dropping the load.

Creep Speed Emergency: If the VFD overheats and you're in the middle of a critical lift, you can override to "Creep Mode" via the hidden menu (requires service key sequence). This gives you 0.5 m/min lift to get the load to safety.

Pendant E-Stop: Meets Category 3 Safety Stop per EN 13849. Cuts power to motor and VFD output stage.



Products Advantages



product-1000-624



Case Show



product-1000-859

product-1000-1000

Products Application



product-1000-837

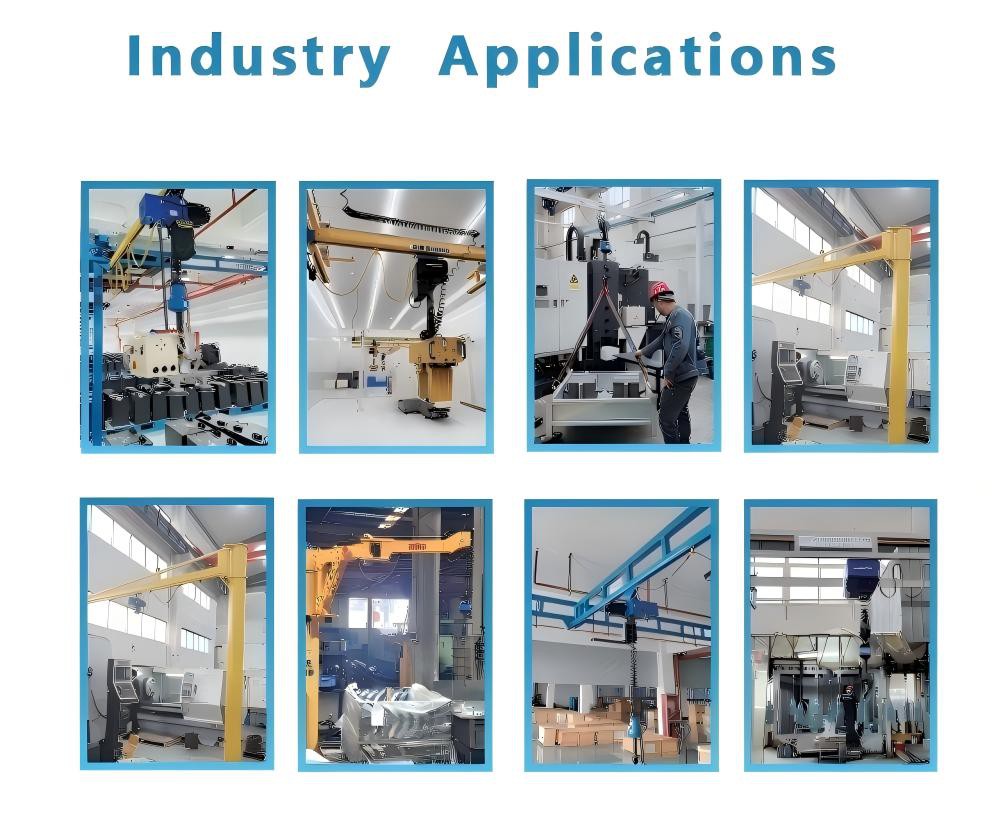

Applications: Where the VFD Justifies the Cost

Automated Production Lines: The 0-10V analog input allows the hoist speed to be controlled by a PLC. This means you can integrate this hoist into a robot welding cell without a custom motor drive.

Cleanrooms / Pharma: The soft start/stop eliminates metal-on-metal brake screech. No airborne particulates generated from brake dust.

Theatrical Rigging: The "Dead Man's Switch" feature and silent brake make this the go-to hoist for lifting lighting trusses over an audience.

Wind Turbine Maintenance: The narrow body fits up the tower ladder. The data logger tracks exactly how many cycles the nacelle crane has done so the operator knows when to service it.



Shipping & Packaging



product-1000-2172

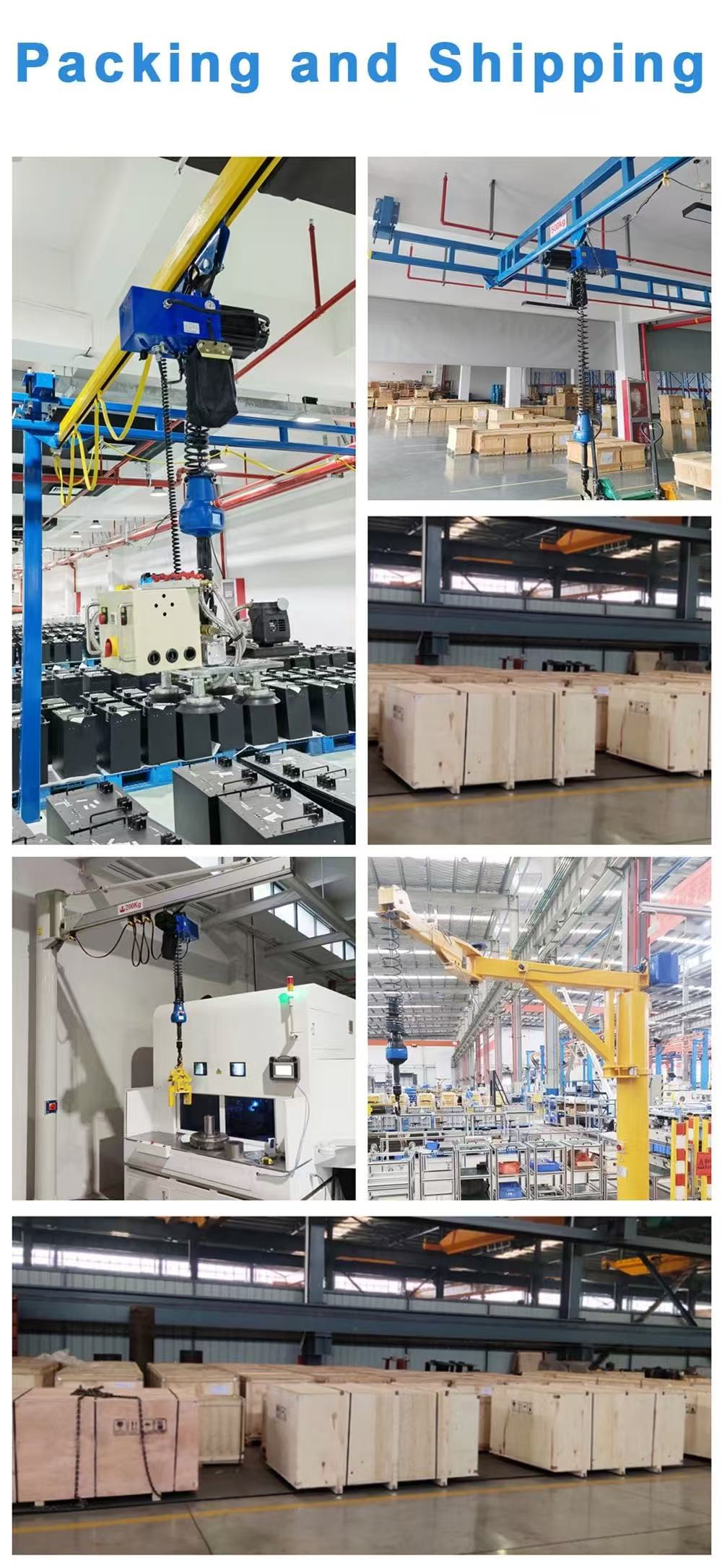

Packaging & Delivery

Packaging: VFD is pre-installed and wired. The unit ships in a high-density foam injection case inside a plywood crate. Shockwatch indicators are applied to monitor handling during transit.

Lead Time: Standard voltage/models: 3-5 Days. Custom firmware/voltage: 14-20 Days.

Documentation: You get a USB stick with the full parameter list, not just a paper manual. Paper manuals get lost; the USB stick stays in the control panel.



Customization (OEM/Project Scope)

This platform is modular. We can adjust firmware and hardware for volume orders:

Data Export: Add RS485 Modbus RTU output for crane management systems.

Custom Paint: Any RAL color for large fleet identification.

Explosion-Proof Adaptation: We can build this VFD unit into an Ex d flameproof enclosure for Zone 1/Zone 2 gas environments (IECEx certification path).

Control Voltage: Standard is 48V. Can be adapted to 24V AC/DC for legacy crane systems.



FAQ



Q: The VFD failed. Can I bypass it and run the hoist directly?
A: No. The motor windings are specifically wound for VFD duty (inverter spike resistant). Running it direct-on-line will fry the insulation in under 100 hours. We stock replacement VFD modules for $X cost (quick swap, 4 screws).

Q: Why does the load cell reading drift by 5-10 kg after an hour?
A: Temperature compensation. As the gear oil heats up, the friction inside the gearbox drops slightly. The software corrects for this. If you see a 50kg drift, check if the hook is resting on something.

Q: Does the wireless remote come with it?
A: The receiver is built-in and active. The handheld transmitter is a separate line item. We can pair any Rayvanbo "R-Series" remote to it in 30 seconds without opening the electrical panel.

Q: Is this hoist compatible with a manual trolley?
A: Yes. The suspension is a standard lug mount. But if you're buying a smart hoist, we highly recommend pairing it with a motorized trolley. The VFD can run a master/slave program where the trolley moves at 1/2 the hoist speed automatically, reducing side pull on the beam.



Why Buy the Intelligent Hoist Instead of a Cheaper Contractor Grade?

If you're lifting the same engine block every day, you don't need this. If you're lifting a $50,000 CNC spindle or a piece of glass that can't be jarred, the soft start alone saves you money on the first day. This is a precision instrument, not just a pulling tool.

Get a quote for the HH Series and see how many overload events your current hoist is hiding from you.
