Stage hoist is a type of mechanical device used to lift and lower objects on a stage, typically used in theatrical or concert productions. It is designed to be mounted on a stage or a truss system and is used to lift and lower scenery, lighting, and other equipment during a performance.
Stage hoist typically consists of a motor, a gearbox, a drum, and a cable or chain. The motor is used to power the hoist and the gearbox is used to control the speed and torque of the hoist. The drum is a cylindrical device that stores the cable or chain and is connected to the motor and gearbox. The cable or chain is attached to the load and is wound around the drum, allowing it to be lifted and lowered.
Stage hoists can be operated manually or electronically, with some models having advanced features such as remote control or computerized automation. Safety features such as overload protection, limit switches, and emergency stop buttons are typically included to prevent accidents and ensure safe operation.
Parameters
|
Model No. |
Lifting Capacity(kg) |
Power supply |
Motor |
Power Rate(KW) |
Lifting speed(m/min) |
Chain Nos |
Chain diameter(mm) |
IP Lever |
|
HHD-Ⅱ0.5 |
500 |
3 phase, 220-440V |
4 pole |
0.4 |
4.5 |
1 |
6 |
IP44 |
|
HHD-Ⅱ1 |
1000 |
3 phase, 220-440V |
4 pole |
0.8 |
4 |
1 |
8 |
IP44 |
|
HHD-Ⅱ2 |
2000 |
3 phase, 220-440V |
4 pole |
1.1 |
3.5 |
1 |
10 |
IP44 |
|
DY0.5 |
500 |
3 phase, 220-440V |
4 pole |
0.75 |
6 |
1 |
6.3 |
IP55 |
|
DY1 |
1000 |
3 phase, 220-440V |
4 pole |
0.8 |
4 |
1 |
7.1 |
IP55 |
|
DY1 |
1000 |
Single phase, 220V |
4 pole |
0.8 |
4 |
1 |
7.1 |
IP55 |
|
DY2 |
2000 |
3 phase, 220-440V |
4 pole |
1.5 |
6 |
1 |
10 |
IP55 |
|
DY+1 |
1000 |
3 phase, 220-440V |
4 pole |
0.75 |
4/8/16 |
1 |
7.1 |
IP66 |

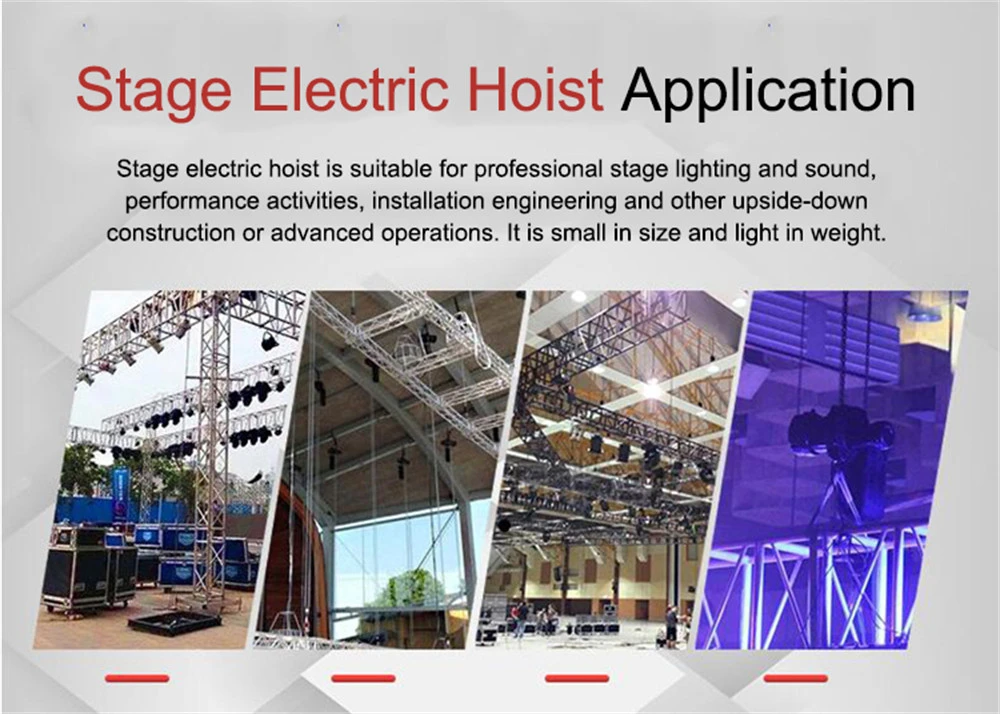

Application
Stage lighting hoist is mainly suitable for commercial stage construction site, and is used for stage setting, sound and lighting arrangement. Single hoist control or multi-hoist linkage design, to meet your needs for a variety of operations.
Features And Advantages
1. Hoist uses a high-efficiency lightweight motor and asbestos-free brake system, which can operate with low energy load.
2. The shell is made of stamped steel, with a solid structure and light weight.
3. The high-safety hook will not break under accidental overload impact, and will only gradually deform when overweight.
4. The plastic chain bag is light, beautiful and durable.
5. Hoist is set with upper and lower limits, and the motor will automatically stop when reaching the limited height to ensure safety.
6. The chain guide plate is made of heat-treated steel.
7. It adopts a design of forward and reverse directions and all-weather use.
8. Equipped with adjustable spiral limit, it is more reliable.
9. The galvanized chain is not easy to rust.
10. The gearbox is filled with lubricating oil to prevent oil dripping onto the table.
11. The hoist motor is sealed in an aluminum steel ring cylindrical shell to protect the motor.
12. This stage hoist is suitable for connection with various controllers and circuit distributors.
13. Double brake system is used to ensure working safety.
14. The stage hoist is easy to operate and maintain.
Product Photos
Package Photos
Recommended popular products
FAQ
How long time warranty can you provide for the stage hoist?
We provide 1-year warranty for the stage chain hoist.
Is there an instruction manual for the stage chain hoist?
Yes, we have a detailed instruction manual for your reference in the hoist package.
What is your IP lever for the stage chain hoist?
We have IP44, IP55. IP66 3 levers types for your selection.
What is the minimum quantity for the stage chain hoist?
People buy stage hoist by double number quantity, such as 2 sets, 4 sets, 8 sets and others. So the minimum quantity can be 2 sets.
What is the usage of a stage chain hoist?
Stage hoists are commonly used in theatrical and concert productions to lift and lower equipment such as lighting fixtures, scenery, and props. They are also used in event production, industrial settings, and other applications where heavy objects need to be lifted and moved. In theatrical productions, stage hoists are used to move scenery pieces on and offstage quickly and efficiently, allowing for seamless scene changes. They are also used to lift and lower lighting fixtures to create different lighting effects during a performance.
What we should care about when we use stage hoist?
- Suitable power supply voltage
- Strong and stable suspension point
- Supervision during the work process
- Guarantee inspection and maintenance timely.
How do you control 4 sets of hoists to lift up and down at the same time?
A separate electric control box which have connected 4 sets hoist will have a main switch for them, that can control the same action of each hoist. Controlling multiple stage hoists at the same time requires a hoist control system that can synchronize the movements of each hoist.
What is the stage chain hoist package?
We use an export wooden box or flight case to pack it.
