5 10 15 20 30 Ton Single Double Girder Overhead Crane Bridge Crane





Parameter	Description	Common Range
Rated Lifting Capacity	The maximum weight of the heavy object that the crane is allowed to lift during normal operation.	1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16 ton, 20 ton, etc. (Generally, the single-girder bridge crane does not exceed 20 tons.)
Span	The horizontal distance between the centerlines of the crane's running rails.	7.5m, 10.5m, 13.5m, 16.5m, 19.5m, 22.5m, 25.5m, etc. (Can be customized according to requirements.)
Lifting Height	The maximum height of the hook from the ground.	6m, 9m, 12m, 15m, 18m, 24m, 30m, etc. (Can be customized non-standard.)
Longitudinal Travel Speed of the Crane	The speed at which the crane as a whole moves on the rails.	10 - 75 m/min (The speed varies depending on different models and working conditions.)
Transverse Travel Speed of the Trolley	The speed at which the hoisting trolley moves on the main girder.	Generally faster than the longitudinal travel speed of the crane, and the specific value varies depending on the equipment.
Working Class	Reflects the busyness degree and load condition of the crane's work.	Generally A3, A4, A5, A6, etc.
Power Supply	The power supply for the crane.	Three-phase AC 380V 50Hz (Can be customized to other voltages, such as referring to the power supply voltages of other countries when exporting abroad.)





• Stable operation

Robust Design for Reliable Performance,the primary support element of a single girder bridge crane is its main beam, typically constructed from high-grade steel such as I-beams or box beams. These materials offer exceptional strength and stiffness. For instance, the I-beam's cross-section is designed to effectively withstand deformation from vertical loads and the horizontal forces generated by the trolley and hoist movement. In contrast, the box beam features a closed profile that provides outstanding resistance to twisting. Throughout the crane's operation, it can effectively manage various stresses from lifting and operational activities, ensuring that the main beam maintains structural integrity and supports the overall stability of the crane system.



• Easy Installation

Since the installation steps of a single-girder overhead crane are relatively simple, foundation construction, structural installation, and electrical system installation can all be completed in a relatively short period of time. Generally speaking, for a small to medium-sized single-girder overhead crane, under good installation conditions, the installation cycle may only take a few days to a week.



• Excellent performance

Single-girder bridge cranes are widely used in various industrial applications due to their simple structure, high stability and flexible operation. They are designed to efficiently utilize space and carry lighter loads, making them suitable for operations in small working environments. Operators can flexibly control them through remote control or the cab to ensure safe and efficient operations. Therefore, this type of crane has become an indispensable and important equipment in manufacturing, assembly and warehousing.



• Easy to operate

The operation of single-girder overhead cranes is mainly achieved through suspended button stations or wireless remote controls. The button layout on these control devices is simple and clear, and usually each button corresponds to a basic action, such as "up", "down", "truck forward", "truck backward", "trolley left", "trolley right". The operator can control the various actions of the crane through simple key operations, without the need for complex command combinations or operating procedures. This intuitive control method allows even operators without much experience to quickly get started after a short training.





Mechanical Processing Facility: In environments where heavy machinery components, such as large tool beds and columns, are utilized, single-beam bridge cranes play a crucial role. These cranes efficiently transport hefty parts from processing zones to assembly lines, significantly enhancing overall production effectiveness.

Metal Fabrication Sector: Within the metalworking industry, single-beam bridge cranes facilitate the movement of metal sheets and pipes. They transfer raw materials from storage to various processing machines like cutting, stamping, or bending equipment. Once fabrication is complete, the cranes can easily position the finished goods either in storage or for subsequent operations.

Mold Production Workshop: Molds, often substantial and cumbersome, require careful handling. Single-beam bridge cranes are essential for the loading, unloading, and storage of these tools. In a mold production facility, they assist in transferring completed mold components to assembly stations, as well as transporting damaged molds to maintenance areas for repairs.

Warehousing and logistics industry
General warehouse: used for loading, unloading and stacking of goods. It can easily lift goods in various packaging forms, such as cartons, pallets, etc., and place them in the appropriate position of the warehouse shelves. In large e-commerce warehouses, goods can be quickly lifted from the incoming area to the storage area, or moved from the storage area to the shipping area.
Port terminal warehouse: In addition to handling general goods, it can also handle some large equipment or goods that need to be stored in port warehouses for a short period of time. For example, some large imported mechanical equipment are unloaded from the port transportation vehicle by a single-beam bridge crane and temporarily stored in the terminal warehouse waiting for transshipment.





The main purpose of using plastic film to wrap single girder eot crane is to prevent dust. During transportation, the crane may pass through some dusty places, such as construction sites, roads near mines, etc. For example, if the crane is used directly for equipment installation in a precision machining workshop after transportation, excessive dust may affect the normal operation of its electrical system and mechanical parts.
At the same time, plastic film can also prevent slight rain erosion to a certain extent.

The main purpose of canvas packaging is to provide better protection, especially for situations where it may be hit or scratched. For example, during transportation, if the crane has a slight collision with the carriage wall or other goods, the canvas can act as a buffer to reduce damage to the crane itself.
Canvas also has a certain degree of air permeability. Compared with completely sealed packaging materials, it can prevent water vapor condensation inside the packaging. This is very important for some crane parts that are more sensitive to humidity, such as electrical control cabinets. If the humidity inside the package is too high, electrical components may be damaged by moisture.

Q: What is single girder overhead crane?

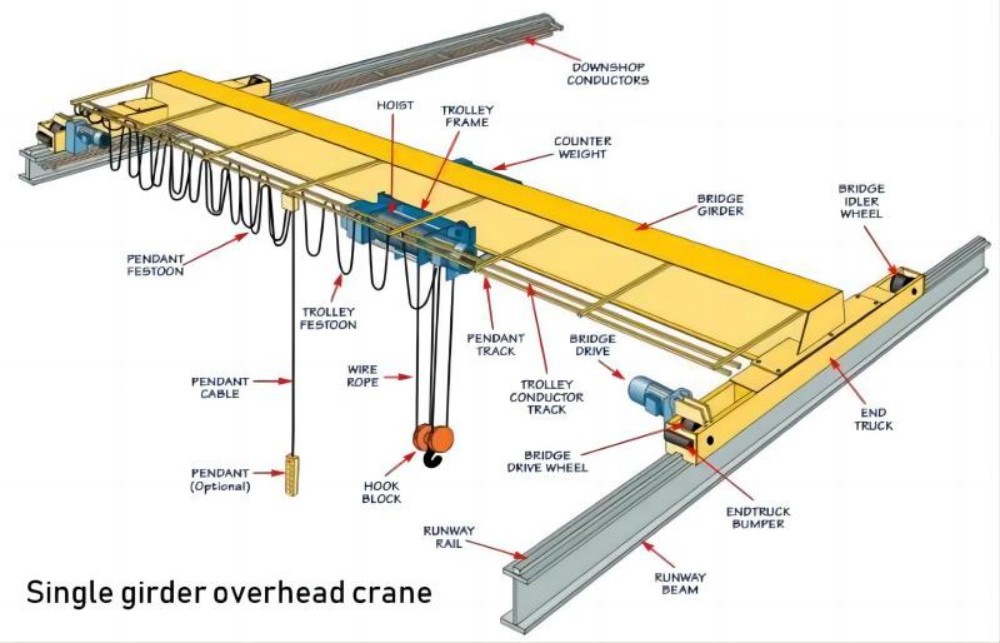

Single girder bridge cranes are lifting machines consisting of a main beam, known for their simple design and high efficiency. This type of crane usually includes a beam that spans across the workshop, with a running mechanism underneath for the lateral movement of heavy objects. The crane is equipped with wheels at both ends, which can move along the track to facilitate the transportation of materials throughout the working area. The simplified structure of the single girder bridge crane is cost-effective in both manufacturing and maintenance. Single girder cranes are particularly suitable for scenarios with light to medium loads, such as small factories, warehouses and specific production lines. Their design makes them ideal for environments with limited space or where rapid material movement is required. The main advantages are lightweight structure, relatively simple installation and operation, and effective reduction of energy consumption.



Q: Do you provide other lifting accessories for single girder overhead crane?

A: Absolutely yes, just tell us what you want and we will provide good solutions



Q: What is the difference between single girder and double girder crane?

A: Single girder crane and double girder crane are two common types of overhead cranes used in various industrial applications. The main difference between these two types of cranes is the number of girders they have.



Single girder crane, as the name suggests, has only one main load-bearing girder, which is supported by end trucks on either side. This type of crane is most commonly used for lighter loads and shorter spans, making it more economical than its double girder counterpart. Single girder cranes are also usually lighter in weight and easier to install and maintain.



On the other hand, double girder crane has two parallel girders installed on top of the end trucks, making it capable of handling heavier loads and longer spans. This type of crane is more commonly used in heavy-duty industrial applications, such as steel mills, shipyards, and manufacturing plants. Double girder cranes are also more flexible and can be customized to suit specific needs, such as adding hoists, trolleys, and other specialized equipment.



Overall, whether you need a single girder or double girder crane depends on your specific lifting requirements. While single girder cranes offer a more economical option for lighter loads and shorter spans, double girder cranes are the better choice for heavier loads and longer spans. Regardless of which type you choose, both single girder and double girder cranes are reliable and efficient equipment that can improve overall productivity and safety in your workplace.



Q: What is the highest capacity of single girder crane?

A: Single girder bridge crane is a very common and widely used lifting equipment, which has the characteristics of simple structure, convenient operation and stable operation. So, what is the maximum tonnage of the single girder bridge crane?



According to different models and configurations, the maximum tonnage of single-girder bridge cranes is also different. Generally speaking, the maximum tonnage of a single-girder bridge crane can reach tens of tons, or even more than a hundred tons. It depends on its design, material, manufacturing process and many other factors.



With the continuous advancement of technology and the intensification of market competition, single-girder bridge cranes continue to introduce new ones, and more and more high-quality and high-performance products emerge. What's more worth mentioning is that the single-girder bridge cranes on the market today can not only meet the needs of large-scale and heavy-duty cargo transportation, but can also be used in various special occasions and play a very important role.



In short, the single-girder bridge crane is an excellent lifting equipment, and its maximum tonnage can reach a large one. In the future development, we can look forward to the emergence of more advanced, efficient and humanized single-girder bridge cranes, which will bring more convenience and output to our production and life.



Q: How long is your delivery day?

A: The time we start to prepare the goods is subject to the receipt of the payment by our bank. Shipment within 10/25/40 days after receipt of payment; the specific time limit is subject to specific requirements and actual time limit.
