Products Description
Product Description:

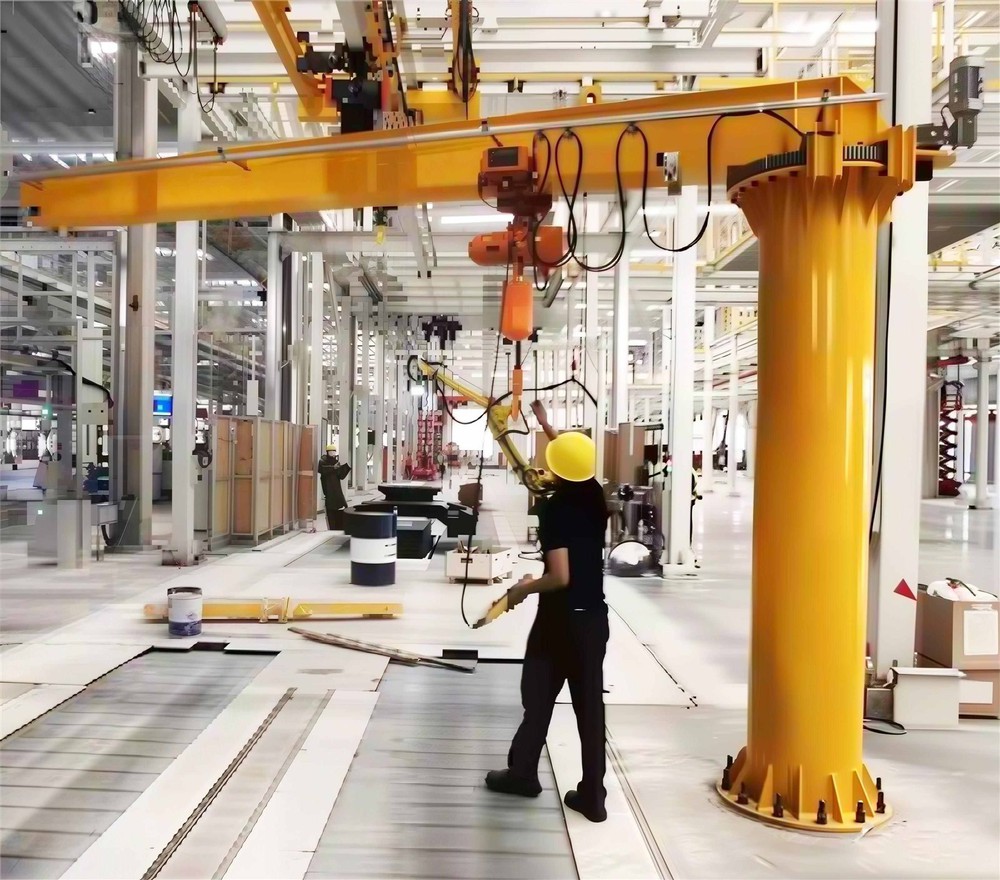

The column-mounted slewing jib crane is a fixed-column lifting device, primarily composed of a column, jib arm, slewing mechanism, and lifting device. The column is securely mounted to a concrete foundation using anchor bolts. The jib arm can rotate smoothly within a certain angle range, covering the material handling needs within a specified work area. Its structural design is scientifically sound, ensuring stable force distribution and smooth, reliable operation, allowing for efficient and precise lifting operations in limited spaces.
This jib crane is suitable for frequent lifting of heavy materials and is often used in conjunction with electric or manual hoists. It is easy to operate and has low maintenance costs. Column-mounted slewing jib cranes are widely used in production workshops, warehouses, assembly lines, maintenance stations, and logistics areas, effectively shortening material handling distances and improving single-station work efficiency. Furthermore, it has minimal requirements on the factory building structure and does not affect the overall layout, making it an ideal lifting solution for improving local lifting capabilities and optimizing production processes.
Products Parameters
|
Lift capacity(T) |
1, 2, 3, 5, 10, 16, 20 |
|||
|
Span(M) |
7.5-22.5 |
|||
|
Mechanism traveling |
speed(m/min) |
10, 20, 30 |
45, 60 |
|
|
motor |
type |
ZDY1 21-4 |
ZDR12-4 |
|
|
power(kw) |
2*0.8 |
2*1.5 |
||
|
speed(r/min) |
1380 |
1380 |
||
|
Electric chain hoist or wire rope hoist |
model |
CD1/MD1/HHBB |
||
|
lift height(m) |
3-25 |
|||
|
traversing speed(m/min) |
20,30 or can be customized |
|||
|
lifting speed(m/min) |
8(7); 8/0.8(7/0.7) |
|||
|
Workclassfication |
A3-A5 |
|||
|
Power supply |
380V/50HZ or on request |
|||
Products Advantages
Product Advantages:
1. Novel Structure:
This equipment adopts a novel and rational structural design, organically combining the column, cantilever, and slewing mechanism. The overall layout is compact, and the force transmission path is clear. Compared with traditional lifting methods, it occupies less space and offers more flexible installation, ensuring both structural strength and enhancing the equipment's practicality and aesthetics.
2. Save Time and Effort
The equipment is easy to operate, with smooth lifting and slewing movements, allowing for quick completion of material lifting and transfer operations, significantly reducing manual handling and repetitive adjustments. By improving the efficiency of single-station operations, it helps enterprises reduce labor intensity, save labor costs, and achieve a more efficient production rhythm.
3. Stable Operation
The entire machine structure has high rigidity, good slewing and balancing performance, and operates smoothly with minimal sway during lifting. Key components are manufactured with high precision and equipped with reliable braking and safety devices, ensuring stable and reliable operation even under frequent use and long-term working conditions.
4. Wide Range of Applications
This equipment is suitable for a variety of working environments and can be widely used in production workshops, warehouses, assembly lines, maintenance stations, and logistics areas. Whether for fixed workstations or localized lifting needs, it can be flexibly adapted to meet the lifting requirements of different industries and working conditions.
Products Application
Product Application:
Workshop & Warehouse: In workshop and warehouse environments, this equipment enables efficient lifting operations around fixed workstations, suitable for lifting and transferring raw materials, components, and finished products. Its compact structure and stable operation minimize space requirements, effectively shortening handling distances, improving workstation efficiency, and reducing manual labor intensity.
Port and Pier: In port and dock operations, the equipment can be used for lifting and transferring equipment components, bulk cargo, and auxiliary materials. Its stable load-bearing capacity and convenient operation meet the demands of high-frequency operations, improving loading and unloading efficiency, reducing manual intervention, and ensuring the safety and continuity of port logistics operations.
Metallurgical Industry: The metallurgical industry has complex operating environments and high demands on equipment stability and reliability. This equipment can be used for lifting and handling steel, furnace materials, and components. Its smooth operation and reliable load-bearing capacity adapt to high-intensity working conditions, helping to improve production efficiency and ensure on-site operational safety.
The Coal Mining Industry: In coal mines and coal processing areas, the equipment can handle tasks such as equipment maintenance, component replacement, and material handling. Its robust structure and strong adaptability allow for stable operation in dusty and complex working environments, reducing the risks of manual handling and improving operational efficiency and safety.

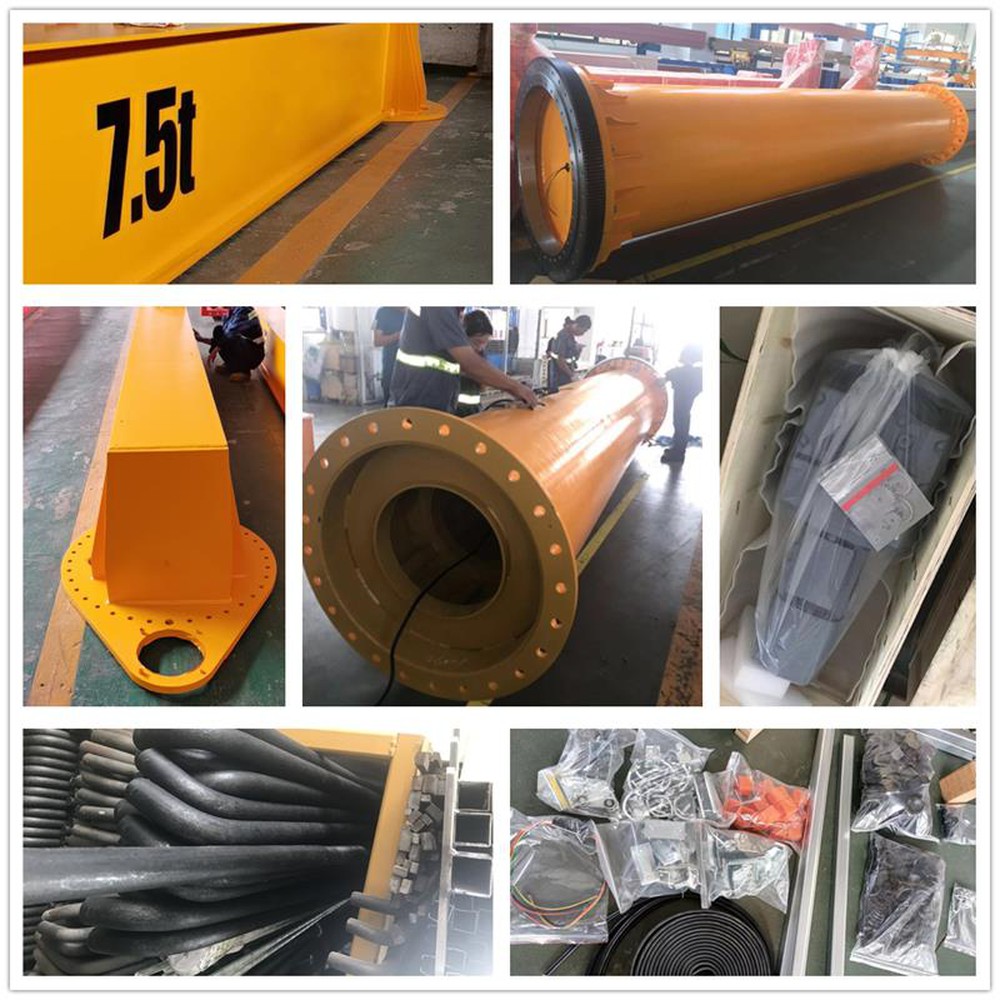

Shipping & Packaging
